The component of product: feeder system, response system, control system, security system, residual liquid automatic processing system

Reaction principle: NaCLO3 + 2 HCL - CLO2 + 1/2 cl2 + NaCL + H2O

Use of the material:

Sodium chlorate industry firsts: (GB/T1618-2008, content of 99% or higher);

Acid salt (GB320-2006 industry firsts, concentration of 31% or higher)

Performance characteristics:

Aqueous solution with sodium chlorate and hydrochloric acid as raw materials, production of chlorine dioxide is given priority to, the compound disinfectant chlorine is complementary,

Proprietary control technology, to control the reaction temperature is appropriate, is an extension to ensure raw material conversion rate is more than 85%, low energy consumption.

Pieces do not need water ejector, directly added to the pressure water pipes, suitable for pipeline pressure to 0-0.6 MPa

Mixer adopts automatic control system, controller, has manual and automatic, residual chlorine (traffic) online control, remote monitoring and other control methods. The operation is simple, the humanized control

Pieces if increase residual chlorine detection device, can in time on the front panel for residual chlorine value, achieve online residual chlorine control, servo variable chlorine.

Mixer equipped with RS485 interface, has the equipment running status signal remote transmission function, and in the master control room remote monitoring. Multiple devices of the display control can be realized in PC sync.

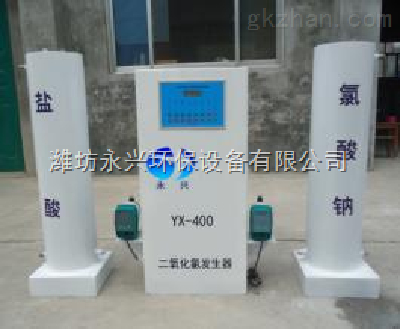

Chlorine dioxide generator equipment adopts digital display screen, with manual/automatic conversion function; Use of metering pump power control, and the characteristics of the metering pump frequency feed, with lack of material safety protection functions such as alarm automatically stop; Feeder system adopt international famous brand metering pump, high measurement accuracy.
